| WIRE DIA | MESH SIZE | WIDTH | WEAVING STYLE |
|---|---|---|---|
| 0.30MM TO 16MM | 0.5MM TO 150MM | 600MM TO 2400MM | PLAIN CRIMP & SINGLE CRIMP |
Spring Steel Wire Mesh
Vibrating Screen
| WIRE DIA | MESH SIZE | EDGE PREPARATION |
WEAVING STYLE |
MATERIAL USED |
|---|---|---|---|---|
| 0.30MM TO 16MM | 0.5MM TO 150MM | AS PER PARTY | DOUBLE CRIMP, INTERMEDITE, DOVEX LOCK |
SPRING STEEL, WIRE, S.S, BRASS, COPER, MILD ST. |
S S Wire Mesh (MM)
| MESH SIZE | WIRE DIA | WIDTH | MATERIAL GRADE |
|---|---|---|---|
| 3MM TO 150MM | 5MM TO 12MM | 750MM TO 2400MM | S.S. 202, S.S. 304, S.S. 316 |
| WEAVING TYPE :- PLAIN WIRE MESH | |||
GI Chainlink Wire Mesh
| WIRE DIA | MESH SIZE | WIDTH | ZING COATING (G.I.) |
|---|---|---|---|
| 1.40MM TO 5MM | 20MM TO 150MM | 750MM TO 3000MM | 40GSM TO 260GSM |
GI Welded Wire Mesh
| WIRE DIA | MESH SIZE | WIDTH | ZING COATING (G.I.) |
|---|---|---|---|
| 1MM TO 5MM | 15MM TO 150MM | 600MM TO 2000MM | 40GSM TO 260GSM |
S S Chainlink Wire Mesh
| WIRE DIA | MESH SIZE | WIDTH | MATERIAL USED |
|---|---|---|---|
| 1.40MM TO 5MM | 20MM TO 150MM | 750MM TO 3000MM | S.S. 202, S.S. 304, S.S. 316 |

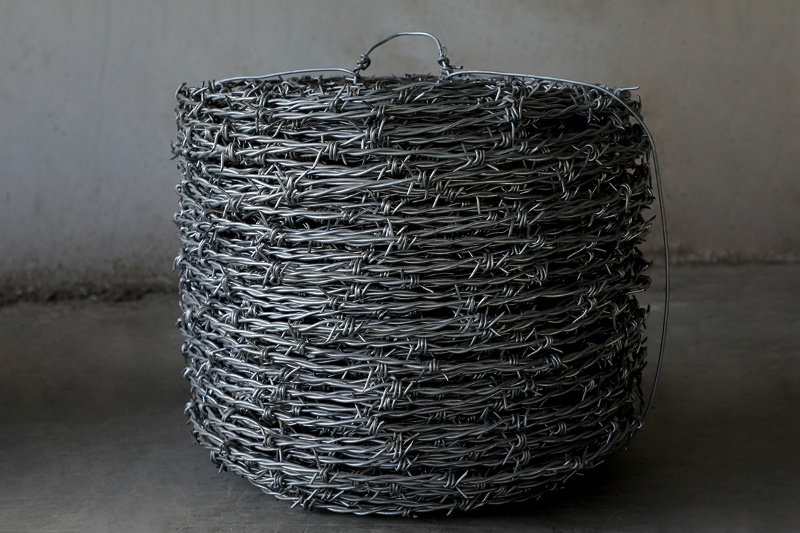

Barbed Wire
| LINE WIRE | BARBING WIRE | PITCH | ZING COATING (G.I.) |
|---|---|---|---|
| 2.50MM (12GAUGE) | 2MM (14GAUGE) | 75MM TO 150MM | 40, 90, 120 |
| 2.50MM (12GAUGE) | 2.5MM (12GAUGE) | 75MM TO 150MM | 40, 90, 120 |
| 2.00MM (14GAUGE) | 2MM (14GAUGE) | 75MM TO 150MM | 40, 90, 120 |
GI Wire Mesh
| MESH SIZE | WIRE DIA | WIDTH | ZING COATING (G.I.) |
|---|---|---|---|
| 2MESH TO 30MESH | 16GAUGE TO 30GAUGE | 90CM & 120CM | 40, 60, 90, 120 |
Crimp Wire Mesh
| WIRE DIA | MESH SIZE | WIDTH | MATERIAL USED | WEAVING STYLE |
|---|---|---|---|---|
| 1MM TO 10MM | 5MM TO 100MM | 600MM TO 2000MM | G.I. WIRE | SINGLE CRIMP & DOUBLE CRIMP |
| 1MM TO 10MM | 5MM TO 100MM | 600MM TO 2000MM | S.S. WIRE | |
| 1MM TO 10MM | 5MM TO 100MM | 600MM TO 2000MM | SPRING STEEL WIRE/HEIGH CARBON |
S S Wire Mesh
| MESH SIZE | WIRE DIA | WIDTH | MATERIAL GRADE |
|---|---|---|---|
| 2MESH TO 500MESH | 2MM TO 0.047MM | 900MM TO 4000MM | S.S. 202, S.S. 304, S.S. 316 |
| WEAVING TYPE :- PLAIN WIRE MESH, TWILL WIRE MESH | |||
M S Welded Wire Mesh
| WIRE DIA | MESH SIZE | WIDTH | MATERIAL USED |
|---|---|---|---|
| 1MM TO 5MM | 15MM TO 150MM | 600MM TO 2000MM | M.S. WIRE, H.B. WIRE |
S S Welded Wire Mesh
| WIRE DIA | MESH SIZE | WIDTH | MATERIAL USED |
|---|---|---|---|
| 1MM TO 5MM | 15MM TO 150MM | 600MM TO 2000MM | S.S. 202, S.S. 304, S.S. 316 |
Having expertise in manufacturing of Wire Mesh and allied products.
